MariTox Marine Flame Retardant Power & Control Cables
MTX300 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame
Retardant Power & Control Cables (Single Core)
Application
These unarmoured power & control cables are used on board of ships in all locations for
fixed installations not subject to mechanical risk complying with IEC standards 60092-352.
These cables are flame retardant, low smoke & halogen free.
Standards
IEC 60092-350/351/353/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

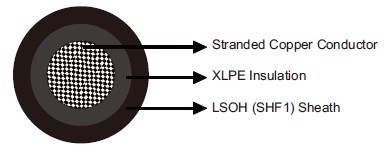

Construction
Conductors: Class 2 stranded copper conductor, round or sector shaped. Class 5
stranded conductors can be offered upon request.
Insulation: XLPE.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Single core: Black
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
3MTX300 1RZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5
conductor, please change –R to –F)
Part No. |
Construction
No. of cores×Cross
section(mm²) |
Nominal Insulation
Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MTX300-1RZ1-R-1C1.5 |
1×1.5 |
0.7 |
1.0 |
5.0 |
40 |
MTX300-1RZ1-R-1C2.5 |
1×2.5 |
0.7 |
1.0 |
5.4 |
50 |
MTX300-1RZ1-R-1C4 |
1×4 |
0.9 |
1.04 |
6.4 |
70 |
MTX300-1RZ1-R-1C6 |
1×6 |
0.9 |
1.04 |
7.0 |
90 |
MTX300-1RZ1-R-1C10 |
1×10 |
0.9 |
1.04 |
7.9 |
130 |
MTX300-1RZ1-R-1C16 |
1×16 |
0.9 |
1.04 |
8.9 |
190 |
MTX300-1RZ1-R-1C25 |
1×25 |
0.9 |
1.1 |
10.4 |
295 |
MTX300-1RZ1-R-1C35 |
1×35 |
0.9 |
1.1 |
11.7 |
380 |
MTX300-1RZ1-R-1C50 |
1×50 |
1.0 |
1.2 |
13.3 |
510 |
MTX300-1RZ1-R-1C70 |
1×70 |
1.1 |
1.3 |
15.5 |
720 |
MTX300-1RZ1-R-1C95 |
1×95 |
1.1 |
1.3 |
17.4 |
970 |
MTX300-1RZ1-R-1C120 |
1×120 |
1.2 |
1.4 |
19.4 |
1220 |
MTX300-1RZ1-R-1C150 |
1×150 |
1.4 |
1.5 |
21.5 |
1505 |
MTX300-1RZ1-R-1C185 |
1×185 |
1.6 |
1.5 |
23.8 |
1865 |
MTX300-1RZ1-R-1C240 |
1×240 |
1.7 |
1.6 |
26.7 |
2420 |
MTX300-1RZ1-R-1C300 |
1×300 |
1.8 |
1.7 |
29.6 |
3015 |
|
